Chevy Bel Air Radiator, Chevy Corvette Radiator, Chevy Nomad Radiator, Aluminum Radiator for 1955-1957 Bel Air Del Ray Nomad 4.3L 4.6L V8, 3 Row Cores
4.5 (32 items)
Limited Time SaleUS$167.40 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 219816892 | Release Date | 2026/05/03 | List Price | US$111.60 | Model Number | 219816892 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

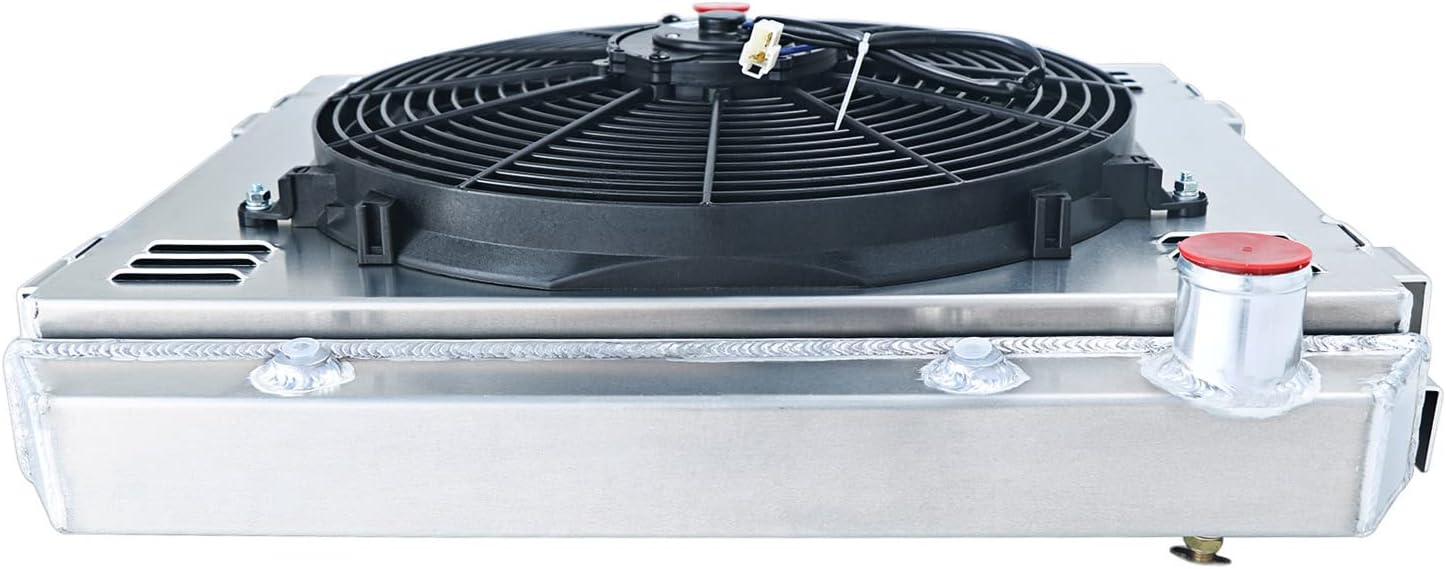

This Radiator Compatible with: Chevy Bel Air 4.3L V8, 1955-1957 Chevy Bel Air 4.6L V8, 1957 Chevy Del Ray 4.3L V8, 1957 Chevy Del Ray 4.6L V8, 1957 Chevy Nomad 4.3L V8, 1955-1957 Chevy Nomad 4.6L V8, 1957 Chevy One-Fifty Series 4.3L V8, 1955-1957 Chevy One-Fifty Series 4.6L V8, 1957 Chevy Two-Ten Series 4.3L V8, 1955-1957 Chevy Two-Ten Series 4.6L V8, 1957 Important: * This radiator is for a 1955-57 Chevy Cars with a V8 mounting location * PLS compare your original radiator with our radiator carefully to avoid not fit Part Number: 5057 CC5057 EC5057 MC5057 CU5057 Thermostat Relay Kit Instructions: * Activates by grounding electric fans at preset temperature. * 180'F/165'F turn on/off temperature. RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. 16" Fan Spec: Voltage: DC 12 Volts Maximum Fan CFM: 2150 Wattage: 120 Wattage Thickness: 2.5" Number of Blades: 10 S-Type blades Maximum Fan RPM: 2250 rpm Amp Draw: 10 amps Includes the Mounting Tabs for an Easy Zip Tie Installation
- Core Size (Inch): 17.2 x 21.6 x 1.73; Overall Size (Inch): 23.4 x 23.4 x 5.9; 3 row cores
- Upper Inlet: 1-1/2" at central; Lower Outlet: 1-3/4" at passenger side
- Build-in Transmission Oil Cooler Details: φ26*315*1/8NPT(P)
- All radiators 100% leak/durability tested; No drilling or modifications needed for installation
- Complete aluminum radiator assembly with no plastic end tanks or rubber gaskets
- High density serpentine fins deliver optimum airflow across core tubes for better cooling
- Buy with no worry-12 months warranty
- Higher capacity for coolant than original radiator
- Radiator features factory style mounting brackets
| Brand | Cooling Care |
|---|---|
| Model | Chevy Nomad Radiator |
| Exterior | Polished |
| Item Weight | 22.6 pounds |
| Manufacturer | Cooling Care |
| OEM Part Number | 5057, CC5057, CU5057, DPI5057, RAD5057 |
| Special Features | Aluminum radiator cap included, OEM style brass petcock drain included |
| Item model number | Chevy Bel Air Radiator |
| Package Dimensions | 25.8 x 25.4 x 8.4 inches |
| Manufacturer Part Number | COOLCARE-0085-1 |
